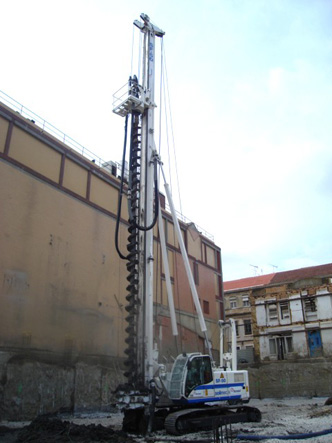

he SF-50 drilling rig, is the evolution of the already existing equipment dedicated to Continuous Flight Auger drilling technique. The upper structure of the SF-50 is mounted on Soilmec base carrier and has been designed to perform: C.F.A. bored piles, Down-The-Hole-Hammer (D.T.H.). Torque: 100 kNm. Max diameter 900mm, max depth 25m, operating weight  39000kg.

Rated engine power kW 164
Total weight t 39
Max torque kNm 100
Max pile diameter mm 900
Max pile depth m 25
Extraction force kN 510

SOILMEC SPA, Via Dismano, 5819, 47522 Cesena (Forlì Cesena) Italy.
Tel. +39 0547 319111, Fax. +39 0547 318548, e-mail: soilmec@soilmec.it
